Autel IM508S Key Programming Tablet
Hurry up, only 3 items left in stock.

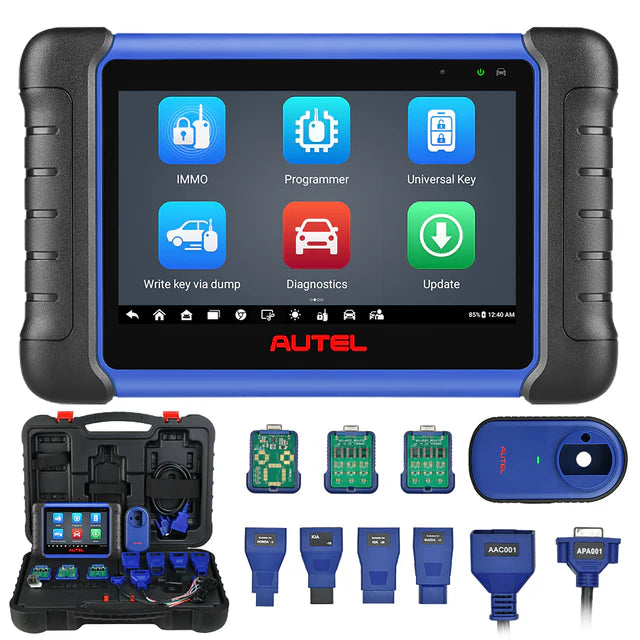

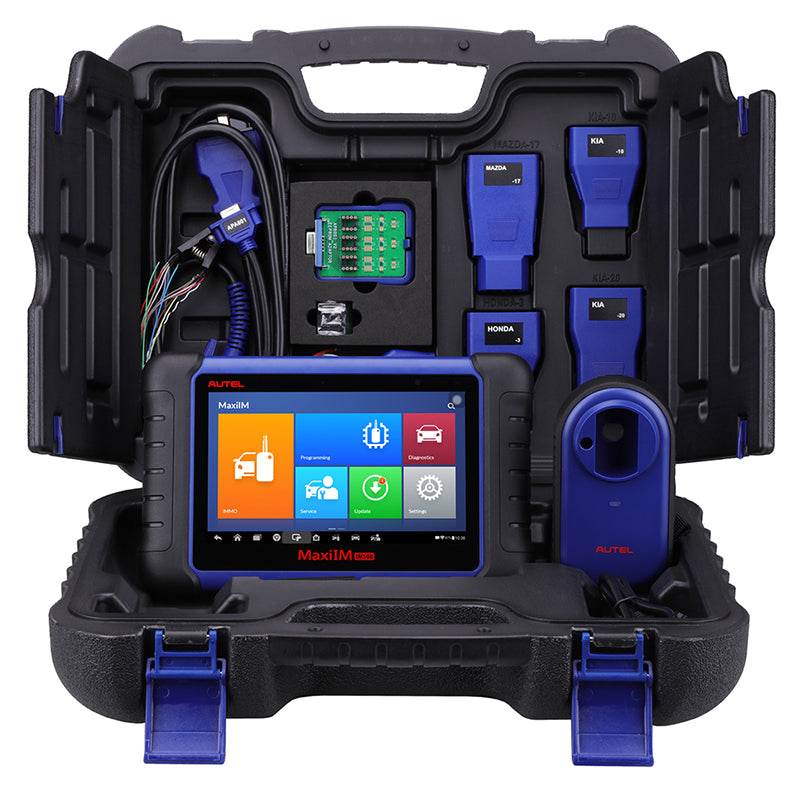

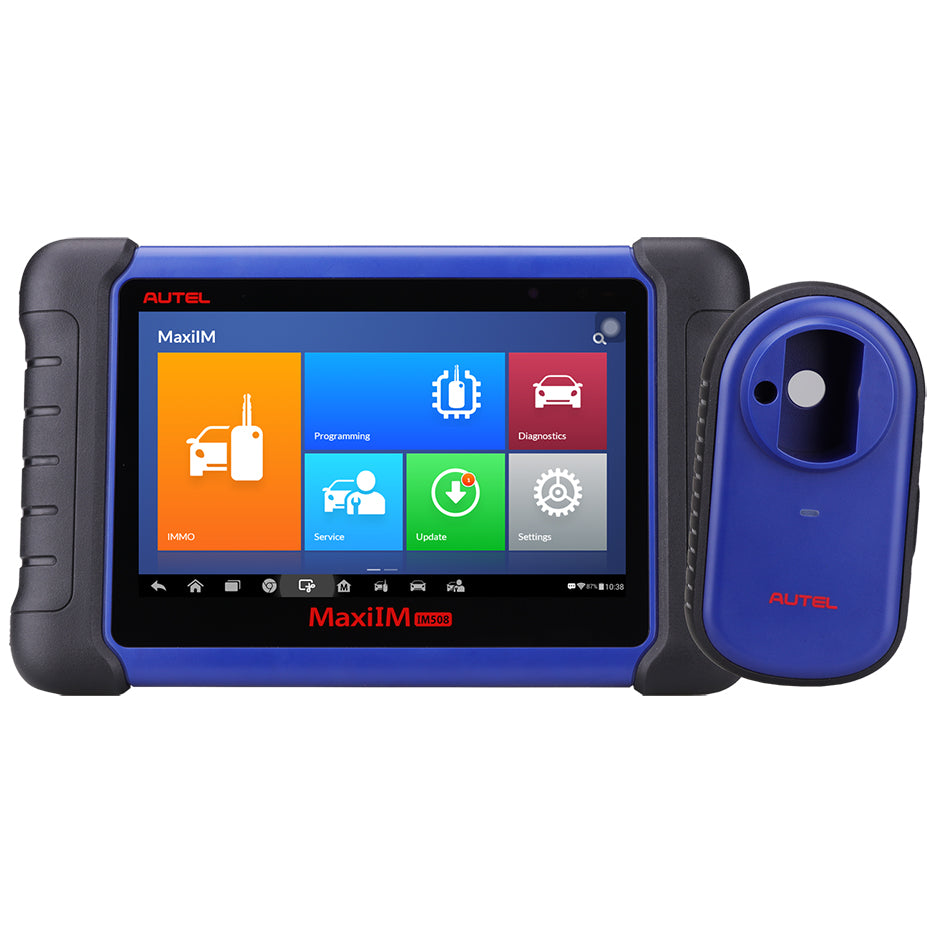

MaxiIM IM508S: Ultimate Diagnostic and Key Programming Tool for Automotive Professionals
MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, featuring a quad-core processor and 64GB onboard memory, runs on the powerful Android 11 operating system, offering faster bootup and operation speed.
Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan, read and erase codes, and view Freeze Frame and Live Data on U.S., Asian, and European vehicles from 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.
Features:
- 7" Touchscreen Android-Based Tablet
- Powerful Key Programming & IMMO Functionality
- All Systems Vehicle Diagnostics
- Comprehensive Service Menu
- Includes the XP200 Key & Chip Programming
- Includes 1-Year Software Updates and Warranty
- Smart Mode for guided and automated key learning
- Expert Mode for advanced key learning
- Read PIN/CS (all keys lost), key generation, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Transponder read/write, EEPROM/MCU read/write
- All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
- Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
- Cloud-based report management, allowing you to view device and test records anytime, anywhere
- Quad-Core processor
- Internal reliable 64GB Memory
- Android 11.0 Operating System for fast bootup and multitasking
- 7-inch LCD touchscreen with 1024 x 600 resolution
MaxiIM IM508S is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
Specifications
| Operating System | Android 11 |
| Processor | Quad core：4x 1.8GHz(A55) |
| Memory: | 4G+64GB |
| Display: | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity: |
|
| Sensors: |
Ambient light sensor for brightness auto changing |
| Power and Battery: |
|
| Tested Battery Life: |
Around 4.5 hours of continuous use |
| Power Consumption: |
500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp.: | 0 to 50°C (32 to 122°F) |
| Storage Temp.: | -20 to 60°C (-4 to 140°F) |
| Operating Humidity: | 5%-95% non-condensing |
| Input Voltage: | 12V (9-24V) |
| Net Weight: | NW: 0.78 kg (1.72 lb.) |
| Supported Automotive Protocols: | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
