Autel MS909 S2 Diagnostic Tablet
In stock
The Autel MaxiSYS MS909 S2 is the updated version of the MS909, delivering enhanced speed, memory, and efficiency for professional diagnostics. Equipped with a 10.1-inch anti-glare display, 8GB RAM, and 256GB of onboard storage, the MS909 S2 runs on Android 13 and offers Wi-Fi 6 connectivity for faster updates.

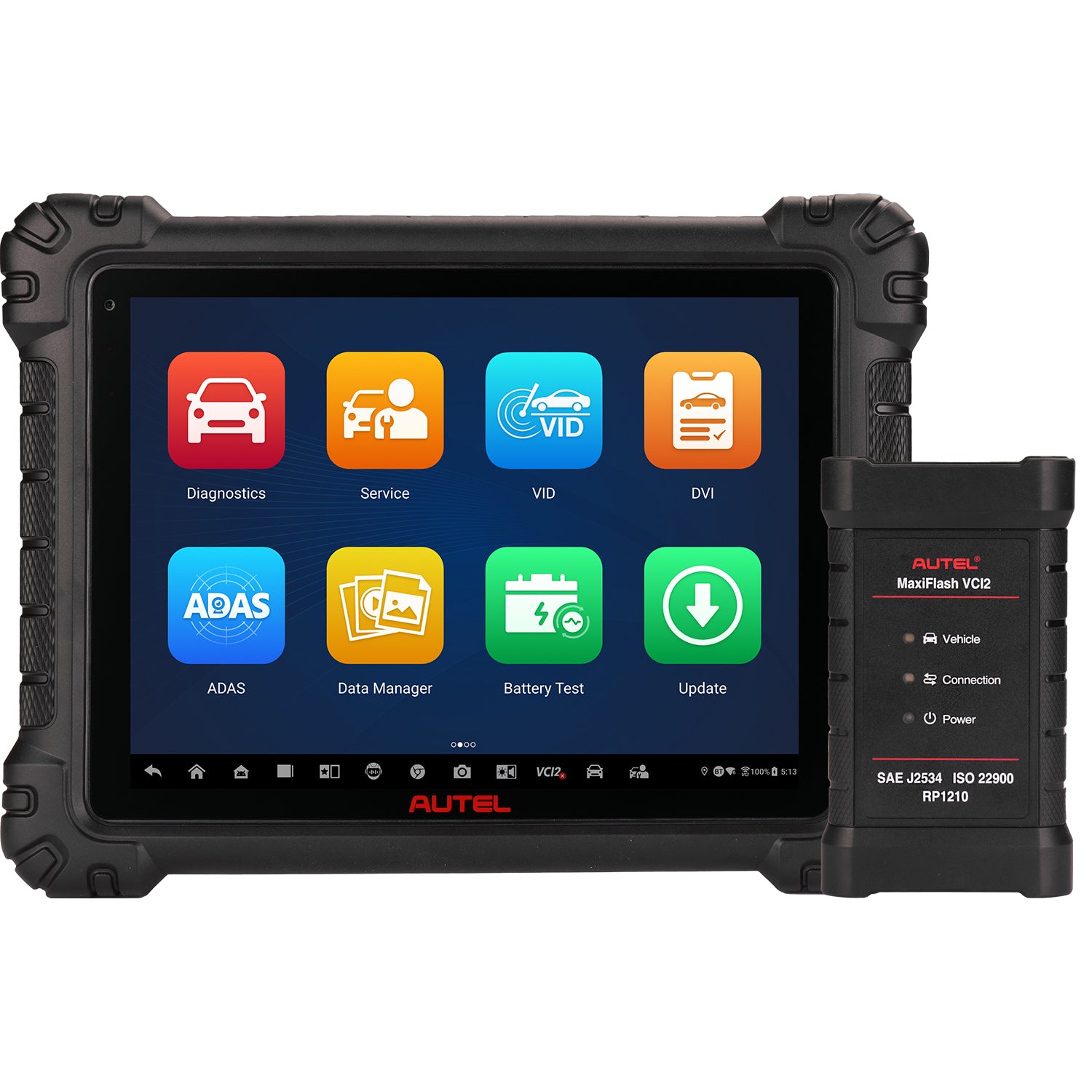

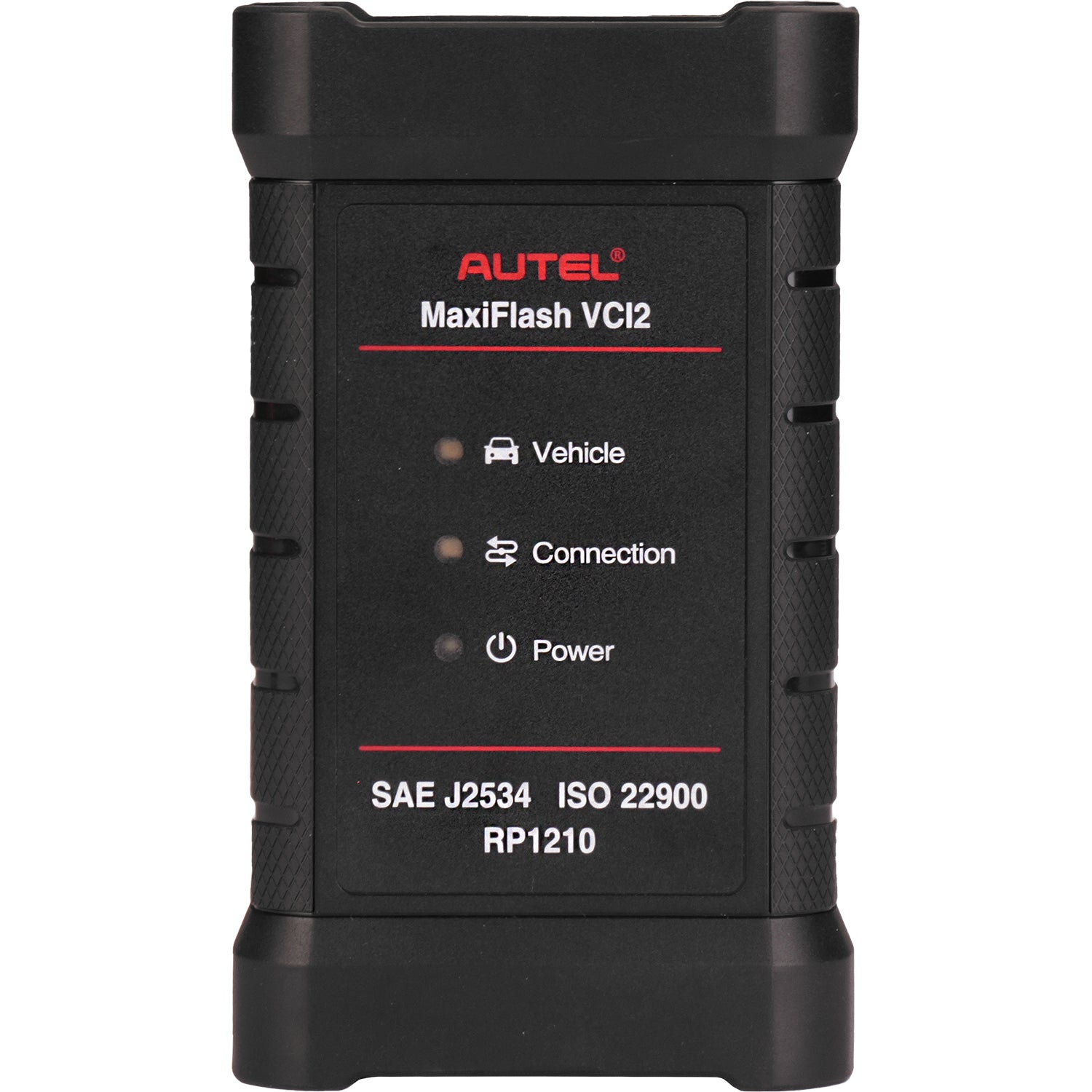

It comes with the VCI2 (Vehicle Communication Interface), enabling secure, stable communication with vehicles across U.S., Asian, and European brands (1996–present).
Designed for shops and technicians, the MS909 S2 supports ADAS calibrations (with optional frame kits), 42 service functions, and secure gateway access for brands like Mercedes-Benz, Stellantis, VW/Audi, and Nissan.
Key Features & Benefits
▶︎ Improved speed and storage (8GB RAM + 256GB)
▶︎ Upgraded Android 13 OS for faster, modern workflows
▶︎ VCI2 interface with stable communication and CAN FD support
▶︎ 42 service functions vs 26 on the original MS909
▶︎ Enhanced Topology 3.0 with split-screen live data
▶︎ ADAS-ready (frame kit sold separately)
▶︎ Secure Gateway support via AutoAuth
Specifications
|
Category |
Details |
|---|---|
|
Operating System |
Android 13 |
|
Processor |
Octa-core |
|
Memory |
12GB RAM, 256GB onboard storage |
|
Display |
11-inch anti-glare screen (2176 x 1600) |
|
Connectivity |
Wi-Fi x 2 (802.11 a/b/g/n/ac/ax 2x2 MIMO) |
|
Camera |
Rear: 16MP w/ autofocus + flashlight, Front: 16MP |
|
Sensors |
Gravity Accelerometer, Ambient Light Sensor |
|
Battery & Power |
15,000 mAh lithium-polymer; charging via 12V DC power adapter or USB-C PD (45W fast charge) |
|
Input Voltage |
DC: 12V/6A; USB-C: 15V/3A max (supports 9V/3A or 5V/3A) |
|
Operating Temp. |
0°C to 50°C (32°F to 122°F) |
|
Storage Temp. |
-10°C to 60°C (14°F to 140°F) |
|
Dimensions (WxHxD) |
315.4 × 240.3 × 39.0 mm (12.42 × 9.46 × 1.54 in) |
|
Weight |
1.65 kg (3.65 lbs) |
|
Protocols |
PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, ISO-J2411 GMLAN, ISO-11898-2/3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2/DS1, VAG KW81/82, SAE-J1708, SAE-J1850 PWM/VPW, ISO 13400, CAN FD |
Comparision
| Feature | MS909 | MS909 S2 |
|---|---|---|
| HARDWARE | ||
| Connection | Bluetooth MaxiFlash VCI (Latest Protocols) |
Bluetooth MaxiFlash VCI2 (Latest Protocols) |
| Screen | 9.7" Touchscreen 1536×2048 DPI (Asahi Glass) |
10.1" Touchscreen 1920×1200 Anti-Glare |
| Battery | 15,000 mAh | 15,000 mAh |
| Processor | Octa-core 2.2GHz + 1.8GHz | Octa-core (Upgraded) |
| Memory | 128GB SSD / 4GB RAM | 256GB Storage / 8GB RAM |
| Camera | 16MP Rear / 16MP Front | 16MP Rear / 16MP Front |
| Docking Station | — | — |
| SOFTWARE | ||
| Operating System | Android 7.0 | Android 13 |
| Software Updates | 1 Year Free (Wi-Fi) | 1 Year Free (Wi-Fi) |
| Automatic Detection | Auto-VIN / Auto-Scan Scan VIN / Plate Scan |
Auto-VIN / Auto-Scan Scan VIN / Plate Scan |
| Secure Gateway Access | Authorized FCA Access (AutoAuth Account) |
Authorized FCA Access (AutoAuth Account) |
| License Plate Reader | Available on select vehicles | Available on select vehicles |
| Vehicle Coverage | US, Asian & European 1996+ passenger/light duty, some medium duty |
US, Asian & European 1996+ passenger/light duty, some medium duty |
| OBDII Test Modes | All 10 Modes Live & Freeze Frame / Mode 6 |
All 10 Modes Live & Freeze Frame / Mode 6 |
| Service Resets | 26 Service Features | 42 Service Features |
| FUNCTIONS | ||
| Diesel PM | Reset Diesel Emissions (Light & Medium Duty) |
Reset Diesel Emissions (Light & Medium Duty) |
| System Diagnostics | Access All Modules (In All Systems) |
Access All Modules (In All Systems) |
| Component Activations | Bi-Directional Control | Bi-Directional Control |
| Enhanced Functions | Coding Adaptations | Coding Adaptations |
| ADAS Calibration | ADAS Upgrade & Frame Kit* (Purchase Required) |
ADAS Upgrade & Frame Kit* (Purchase Required) |
| Battery Analysis | MaxiBAS Software** | MaxiBAS Software** |
| Complete TPMS | — | — |
| Topology Module Mapping | Basic Color-Coded Status Screen (On Supported Vehicles) |
Enhanced Topology 3.0 Split-Screen PID Analysis |
| Oscilloscope | — | — |
| Split-Screen Display | — | View Multiple Functions at Once |
