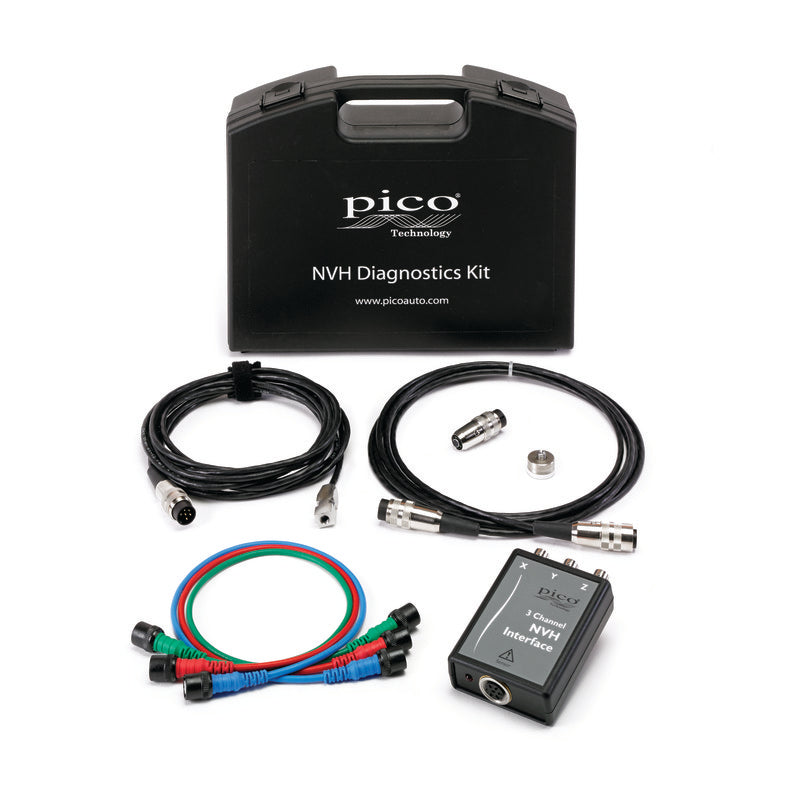

Pico NVH Starter diagnostic kit (carry case)(PQ126)
In stock
The PicoDiagnostics NVH Starter Kit (PQ126) is an essential tool for automotive and diesel technicians aiming to efficiently diagnose and resolve noise, vibration, and harshness (NVH) issues. By capturing and analyzing vibrations and sounds within a vehicle, this kit helps pinpoint the root causes of common complaints such as cabin noise, engine vibrations, and drivetrain disturbances.

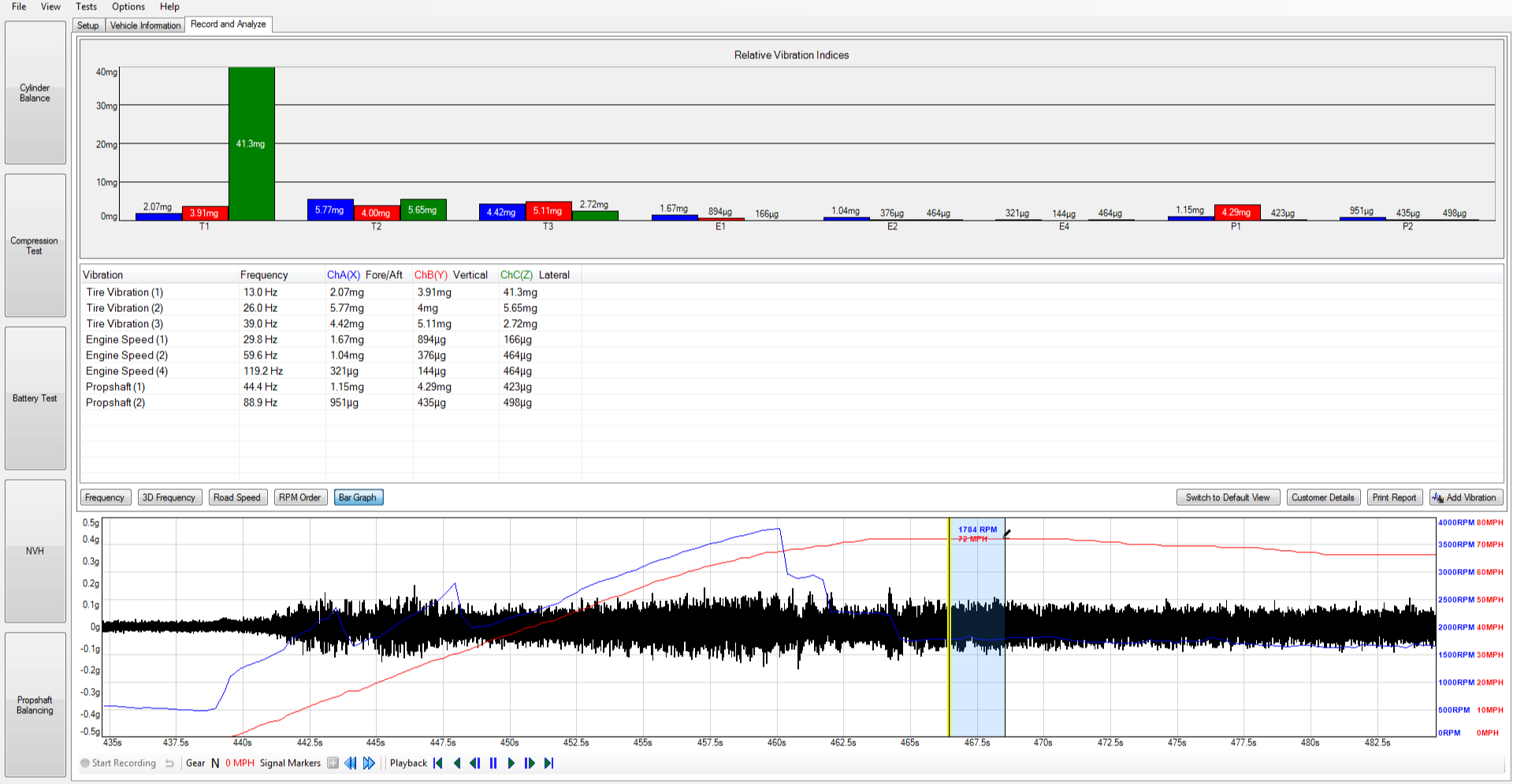

Utilizing a 3-axis accelerometer and a high-sensitivity microphone, the NVH Starter Kit interfaces seamlessly with PicoScope Automotive oscilloscopes (models 4425, 4225, 4423, 4223) to provide comprehensive data visualization. Technicians can view results in various formats, including bar graphs, frequency charts, and 3D spectral displays, facilitating a thorough understanding of NVH issues.
The kit’s user-friendly software allows for pre-test recordings, ensuring data is captured during road tests without distracting the driver. Post-test analysis can be conducted conveniently on a PC or laptop, and reports can be saved and shared with customers, enhancing transparency and trust.
Key Features & Benefits:
Comprehensive NVH Analysis
Detects and analyzes vibrations and noises across various vehicle components, aiding in accurate diagnostics.
Real-Time Data Visualization
Provides multiple display options, including bar graphs and 3D frequency charts, for in-depth analysis.
User-Friendly Operation
Allows for pre-test recordings and easy playback, ensuring driver safety and efficient data review.
Seamless Integration
Compatible with PicoScope Automotive oscilloscopes, facilitating straightforward setup and operation.
Enhanced Customer Communication
Generates detailed reports that can be shared with customers, improving service transparency.
Specifications
| Interface Unit Dimensions | 105 mm x 65 mm x 27 mm |
| Microphone Dimensions | 43 mm x Ø17 mm |
| Magnet Dimensions | 12 mm x Ø18 mm |
| Sensor Extension Lead Length | 3 m |
| Battery | CR123(A) 3V lithium primary cell (user-replaceable) |
| Battery Life | Shelf – 10 years; Vibration mode – 6 months; Microphone mode – 2 months |
| Maximum Measurable Acceleration | ±5 g |
| Vibration Frequency Range (3 dB) | DC to 350 Hz |
| Shock Survivability (Accelerometer Head) | 10,000 g |
| Operating Temperature Range (Accelerometer Head) | –40 °C to 85 °C |
| Thread Mounting (Accelerometer) | ¼” x 28 UNF |
| Microphone Sensitivity | 45 mV/Pa at 1 kHz |
| EMC Approvals | CE: Meets EN61326-1:2006 |
